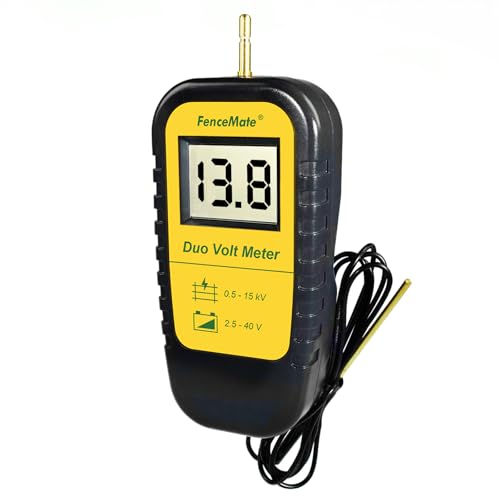

FenceMate Digital Duo Volt Meter to Check Voltage of Fence Charger&Battery | Electric Fence Tester to Check Electric Fence Charger Energizer Voltage up to 15 kV & Battery Voltage up to 40 V

About this item

• Measures battery voltage from 2.5 to 40 V, or output voltage from 0.5 to 15 kV for pulse-type electric fence chargers (energizers, controllers, fencers), traces fence line faults and checks earthing performance
• Uses micro-computer technology for consistent temperature stability. Activates automatically when a fence charger pulse or battery power is detected; features automatic power on/off and a large LCD display. Housed in molded engineering-grade polymer for durability; designed with ergonomic, non-slip grip.

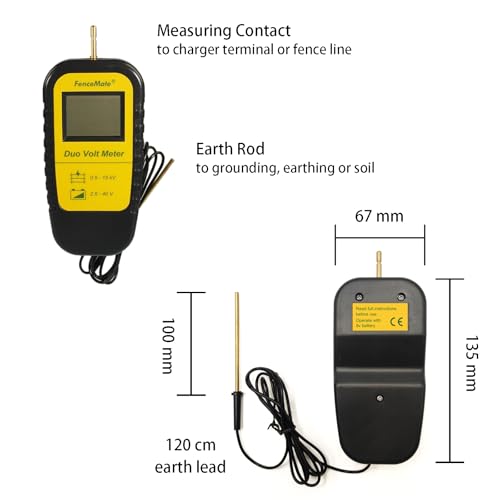

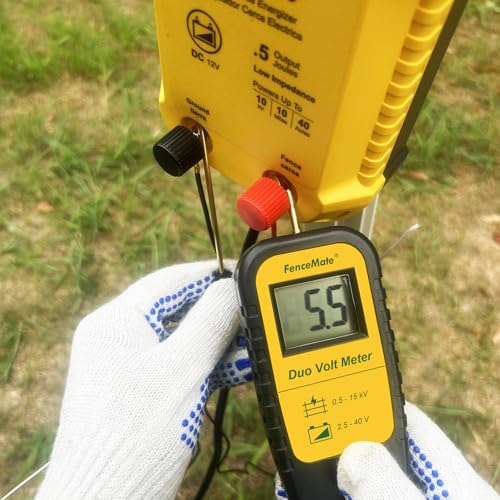

• To check output voltage of chargers (energizers, controllers, fencers), place the copper fence probe (located on top of the casing) on the fence output terminal of the charger, and keep the earth rod (connected with black wire) in contact with the charger’s ground terminal.

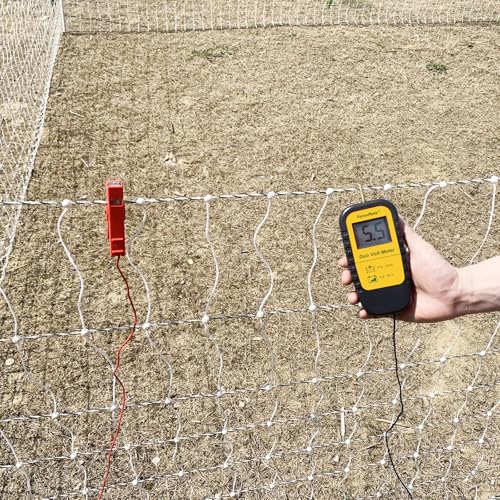

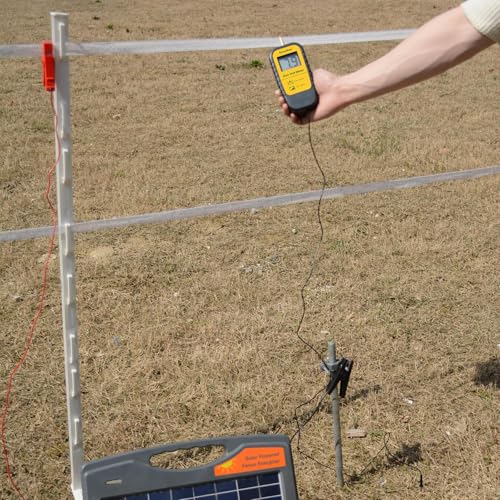

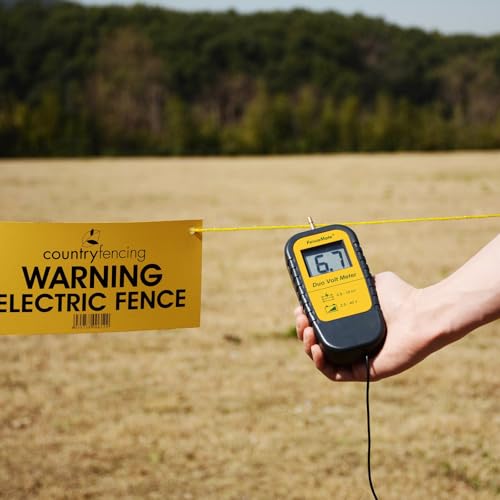

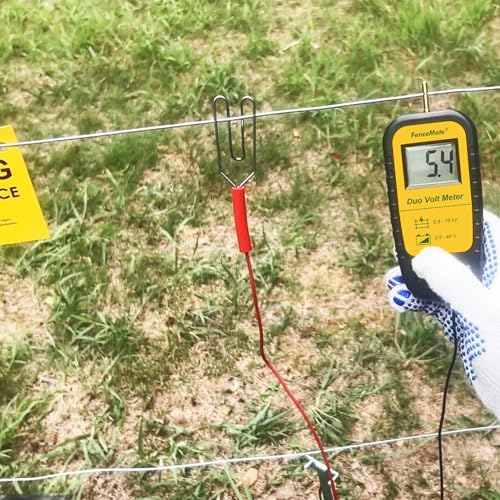

• To locate shorts or faults in fence lines, use the fence probe for quick contact with fence lines (conductors, i.e., wire, rope, braid, tape), while inserting the earth probe into the ground.

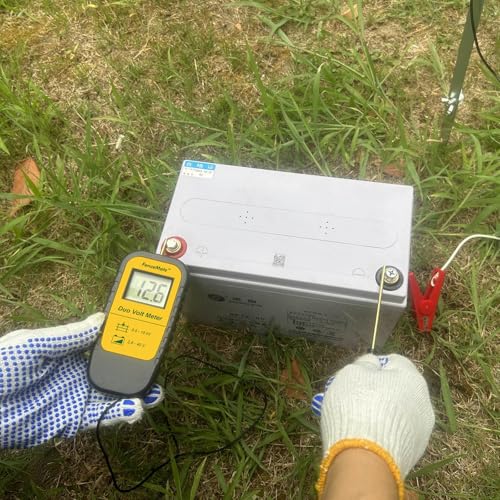

• To check battery voltage, keep the fence probe in contact with the positive (+) terminal and the earth probe in contact with the negative (-) terminal
• Includes reverse connection protection. Powered by a replaceable 9 V battery (6F22, included).

Overview

• Brand: FenceMate
• Power Source: Battery Powered
• Min. Operating Voltage: 2.5 volts
• Unit Count: 1 Count
• Number of Items: 1
